More on the way:
This product will not ship immediately. Contact us for estimated delivery.

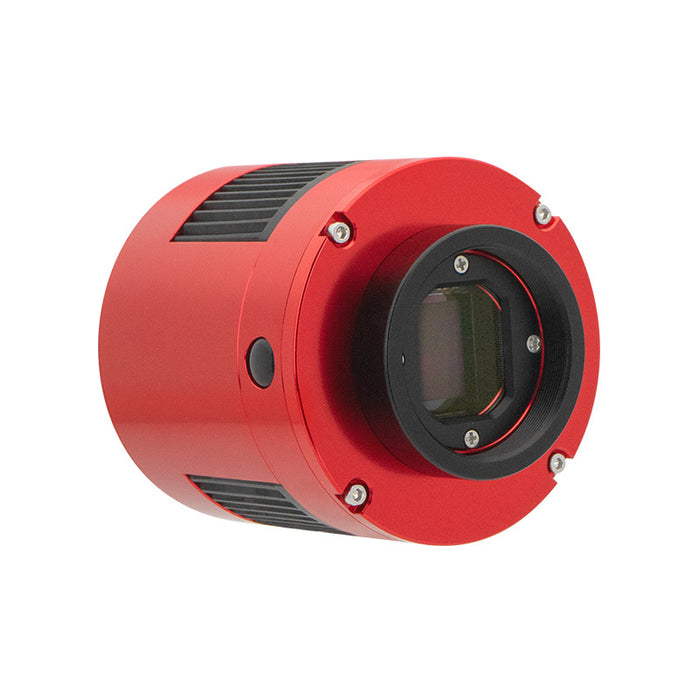

Camera technical details
- Sensor: 4/3" SONY IMX294 CMOS
- Resolution: 11.7 Mega Pixels 4144 x 2822
- Pixel Size: 4.63µm
- Sensor Size: 19.2mm x 13.1mm
- Diagonal: 23.2mm
- Exposure Range: 32µs-2000s
- ROI: Supported
- Read Noise: 1.2e @39db gain
- Full well: 63.7ke
- Interface: USB3.0/USB2.0
- Bit rate: 14-bit ADC
- Adaptor: M42X0.75
- Dimensions: 78 mm Diameter
- Weight: 410g
- Back Focus Distance: 17.5mm (6.5mm without female M42)
- Cooling: Regulated Two Stage TEC
- Delta T: 35 degrees C below ambient
- Cooler Power Supply Required: 12V at 3A
Supported resolution
- 10Bit ADC
- 4144×2822 19fps
- 14Bit ADC
- 4144×2822 16fps
