EQ6R-Pro Pier Adapter Kit

In Stock
$249.00
SKU EQ6-PAK
In Stock!

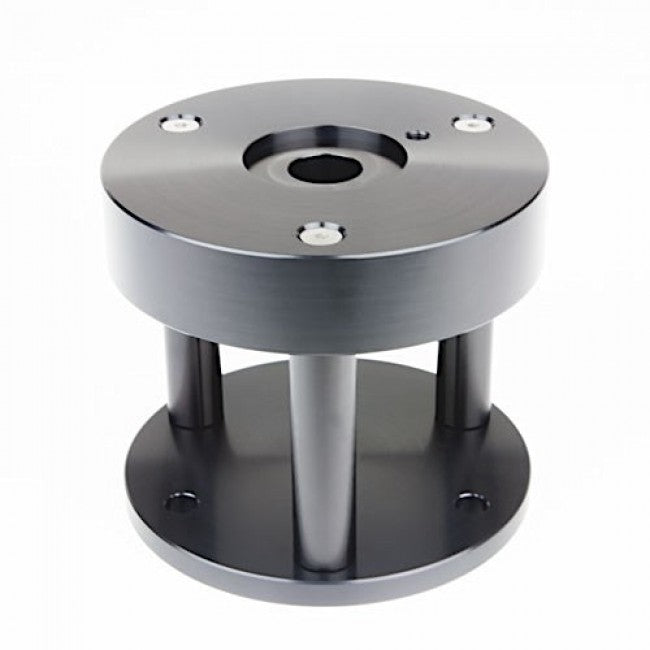

It has a cylindrical recess to accept the mounting post on the bottom of the EQ6R-Pro mount head. An included bolt is used to secure the mount to the adapter plate in a similar fashion to how the EQ6R-Pro normally bolts to the tripod. There is also a pre-drilled hole on the top adapter plate to accept the azimuth-adjustment post. (The post from the original tripod is used on the adapter kit.)

Three stand-off posts keep the top plate clear of the pier itself, allowing easy mounting and adjustment of the EQ6R-Pro. The posts are each 1" in diameter and provide 4" of clearance.

The bottom plate is designed to attach to a pier with three bolts. Three 1/2" bolt holes are provided in the bottom plate, between the stand-off posts.

Specifications

  • 7" diameter
  • 6" total height
  • 1/2" thick bottom plate
  • 1-5/8" thick top plate
  • Anodized aluminum construction
  • Stainless steel hardware
  • Made in USA

Base Plate Dimensions for Mounting
